QUALITY THAT LASTS. DON¡¦T MISS IT MEANS
YOU¡¦LL GET THE BEST MARINE PRODUCTS AVALLABLE!!!
|
For over 10 years and across the world, BAOLONG
EVA FLOATS have been known for their best quality and strength.
In commercial and private applications our products have proven
themselves time and again. We accummulated the experience of produced
¡§EVA FLOATS¡¨ and now developing the best quality of ¡§EVA FENDERS¡¨
which you can rely on the maximum strength & durability.
|
 |
The highly advanced and efficient product-
¡§EVA FENDER¡¨ IS SECURING A UNIFORM |

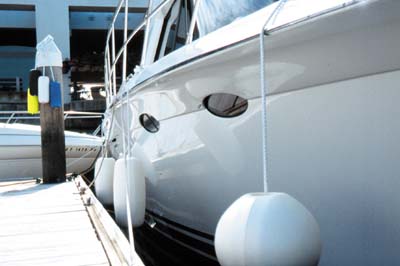

QUALITY. SAFE BERTH WITH "BAOLONG EVA FENDER". OUR SOLID BODY;
NOT AIR FILLED WILL GIVE YOUR BOAT EXTRA PROTECTION. |
|
BAO LONG EVA
FENDERS WON THE HONOR OF THE "INVENTION AWARD OF THE
LATEST PRODUCT" IN THE 1998 CHICAGO YACHT EXHIBITION.
|
¡@ |
BAO LONG E.V.A FENDERS; FLOATS;
DOCKAGE BUMPERS; RISERS; AND MOORING
BUOYS, THE EVA FOAM CHARACTERISTICS
NOT BE HARDENED OFF REGARDLESS OF
TEMPERATURE CHANGED. |
1. MATERIAL: "BAOLONG
FLOATS" are mainly manufactured from ETHYLENE VINYL ACETATE
COPOLY-MER(E.V.A) blended with examined high grade engineering POLYMERS
which quite different from other materials such as PVC or SYNTHETIC-RUBBER.
E.V.A is the newest floats material and also superior to PVC and
SYNTHETIC-RUBBER on the every respect. Therefore "BAOLONG FLOATS"
will be called "EVA FLOATS" hereinafter. |
2. SOFTNESS: "BAOLONG
EVA FLOATS" are very light and soft. The hardness at room temperature
is Hs 42 minus 20 degree C is Hs 50. The hardness of EVA FLOATS
are always under Hs 60 regardless of temperature changed. EVA FLOAT
is very strong against the sun-shine and cool weather. PVC FLOAT
hardness is always over Hs70 .The colder the harder. (Remark: In
generally under Hs 60 to be called "SOFT " and over Hs
60 to be called "HARD") |
3. DURABILITY: "BAOLONG
EVA FLOATS" of the tensile strength to be 10 kgs / sq.cm. &
Elongation to be 330%."BAOLONG EVA FLOATS" have such an
excellent elasticity and resistance against breakage, wearing out
and any transforming. Also does not harm and damage the fishing
nets. GUARANTEE !!! Quite never shrink and be broken !!! |
4. BUOYANCY: "BAOLONG
EVA FLOATS" stock no. BL-10 buoyancy to be 4 kgs and after
24 hours water immersion buoyancy still keep 4 kgs. That is EVA
FLOATS buoyancy 100% no change regardless of 24 hours fishing operation.
Because "BAOLONG EVA FLOATS" component of a perfect unicellular
foam units which is soft; light and does not absorb water even after
a long hour operation. "EVA FLOATS" enable to keep the
buoyancy constant and no need of drying. |
5. GROMMET: BAOLONG EVA FLOATS
has reinforced grommet (Recessed) which has enhanced much more resis-tance
to wear and tear so it will not be broken by the roller or the lifting
machines. It has a longer and longer lift than PVC/SYNTHETIC RUBBER
FLOATS. |
6. OPERATING EFFICIENCY: "BAOLONG
EVA FLOATS" are very light; soft and non absorptive water for
easier; more efficient and more economical handling. "BAOLONG
EVA FLOATS" just due to frequent improvements in design meet
all the exacting requirements of fishing operation . Therefore when
lifting the fishing nets on fishing boat the handling/operating
are very very easy. |
7. WEATHER RESISTANCE : According
to WEATHER TEST (TYPE WS WEATHER-O-METER 150 HOURS) "BAOLONG
EVA FLOATS" tensile strength (percentage of original value)
to be 100% that is EVA FLOAT tensile strength 100% no change regardless
of weather and a long-long-hour fishing operation. |
8. WATER PRESSURE RESISTANCE : "BAOLONG
EVA FLOATS" for deep sea temporarily use proved completely
free from fracturing and transforming and absorbing water even under
hydraulic testing at 20 kgs/sq.cm.equivalent to pressure 200 meters
sea depth. |
¡@ |
¡@
EVA OPEN-CORE CENTER FENDERS:
|
THE NEWEST &
EXTRA DURABLE OF EVA OPEN-CORE CENTER FENDERS |



|
A SOLID BODY; NOT AIR FILLED.
RESISTANT TO ANY SHARP OBJECT; COOL WEATHER; HEAVY PRESSURE; CHEMICALS
; SUNLIGHT; OIL.
SUPER STRONG.
EXTRA DURABLE & RELIABLE. |

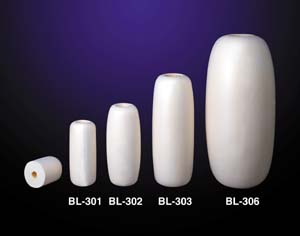

EVA OPEN-CORE CENTER FENDERS: |
STOCK
NO. |
CIRCUMFERENCE |
D*L*Ø |
D*L*Ø |
BOAT SIZE |
BUOYANCY |
|
IN. |
CM. |
INCHES |
CM |
BL-201 |
38 |
96 |
12"*12"*1" |
30*30*2.5
|
30 t0 50' |
12.5KG |
880 pcs |
BL-202 |
50 |
126 |
16"*16"*1
1/16"
|
40*40*2.6
|
50 to 70' |
30.0KG |
324 pcs |
BL-203 |
63 |
159 |
20"*20"*2" |
50*50*5.0
|
70' and up |
46.0KG |
270 pcs |
BL-301 |
19 |
48 |
6"*15"*3/4"
|
15*38*2.0
|
Up to 30' |
7KG |
2256 pcs |
BL-302 |
25 |
63 |
8"*20"*1" |
20*51*2.5
|
30 to 50' |
14KG |
984 pcs |
BL-303 |
31 |
79 |
10"*26"*1
1/16"
|
25*66*2.7
|
50 to 70' |
28KG |
|
BL-306 |
53 |
134 |
17"*36"*2"
|
43*91*5.0
|
70' and up |
77KG |
162 pcs |
|
 |
 |
DURABLE; RELIABLE; RESISTANT. |
BAOLONG
EVA FLOATS SHOULD GIVE BETTER DURABILITY AT HEAVY DUTY IN PRACTICAL
USE CAUSED BY HIGHER MECHANICAL POWER OF NET HAULING SYSTEM; BAD
& COOL WEATHER CONDITIONS AND INCREASING FREQUENCY OF CATCHING.
BAOLONG EVA FOLATS NEVER CRACK
IN THE BODY AFTER USED FOR SERVAL YEARS. IT QUITE DIFFERENT FROM
THOSE FLOATS MADE OF PVC. THEREFORE BAOLONG EVA FLOATS ALREADY
GOT HIGH REPUTATIONS COME FROM FISHERMEN ALL AROUND THE WORLD.
|
 |

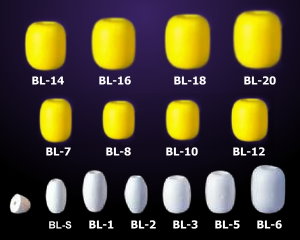

SPECIFICATION: |
¡@ |
ITEM
NO. |
NET
WEIGHT |
BUOYANCY |
SIZE
(L*W*Ø)MM |
STANDARD
CARTON PACKING |
CARTON WEIGHT(KG) |
|
CONTENTS |
MEASUREMENT(CM) |
NET |
CROSS |
BL-S |
65g |
470g |
130*80*16 |
147 pcs |
57.5*57.5*42 |
9 |
11 |
28,812 pcs |
BL-1 |
80g |
650g |
150*90*20 |
144 pcs |
56*56*61 |
12 |
14 |
21,168 pcs |
BL-2 |
85g |
650g |
145*95*18 |
144 pcs |
56*56*61 |
12 |
14 |
21,168 pcs |
BL-3 |
120g |
900g |
140*110*22 |
120 pcs |
54*54*67 |
14.5 |
17 |
16,200 pcs |
BL-5 |
150g |
1300g |
168*114*24 |
100 pcs |
56*56*66 |
15 |
17.5 |
13,500 pcs |
BL-6 |
230g |
1450g |
165*125*24 |
65 pcs |
55*55*64 |
14 |
16 |
8,775 pcs |
BL-7 |
320g |
2400g |
200*150*30 |
48 pcs |
57*57*59 |
15.5 |
17.5 |
7,056 pcs |
BL-8 |
390g |
3000g |
193*163*30 |
36 pcs |
57*49*66 |
14 |
16 |
5,760 pcs |
BL-10 |
520g |
4000g |
208*194*35 |
27 pcs |
56*56*62 |
14 |
16.5 |
3,969 pcs |
BL-12 |
600g |
5000g |
226*195*40 |
27 pcs |
57*57*67 |
16.7 |
19.2 |
3,645 pcs |
BL-14 |
700g |
6050g |
245*202*40 |
27 pcs |
58*57*73 |
19.3 |
22 |
3,321 pcs |
BL-16 |
950g |
7200g |
250*210*45 |
18 pcs |
61*43*71 |
16 |
18 |
3,024 pcs |
BL-18 |
1050g |
9000g |
255*225*45 |
18 pcs |
78*47*69 |
19 |
21 |
2,160 pcs |
BL-20 |
1250g |
10050g |
285*245*45 |
18 pcs |
84*47*70 |
22 |
24.5 |
1,080 pcs |
|
EVA MOORING BUOYS |
THE SUPER STRONG EVA FOAM ASSURES LASTING
DURABILITY. ALL HARDWARE IS HOT-DIPPED GALVANIZED STEEL. |
|
SOLID
BODY RESISTS EXTREME WEATHERING; MOST CHEMICALS AND FUELS; GUN SHOOTING. |

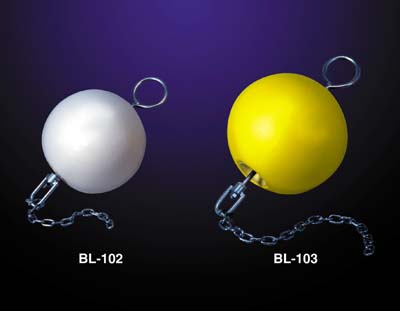

EVA MOORING BUOYS |
STOCK
NO. |
D*Ø |
BUOYANCY |
INCHES |
CM |
BL-102 |
16"*5/8" |
40*1.6 |
30KG |
BL-103 |
20"*3/4" |
50*2.0 |
46KG |
|
EVA RISER (MARKER BUOY) |
SOLID BODY-NOT AIR FILLED, IT COULD
BE USED AS RIFLE TARGET.
SUPER STRONG-NOT BE BROKEN OFF & HARDENED OFF. DON'T ABSORB
WATER. AFTER OVER 10 YEARS OPERATION. |
|

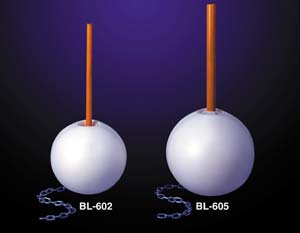

EVA RISER |
STOCK
NO. |
D*Ø |
BUOYANCY |
INCHES |
CM |
BL-602 |
16"*1 3/4" |
40*4.5 |
30KG |
BL-605 |
20"*2" |
50*5.0 |
46KG |
|
ADVANCED BOATING PROTECTION: |

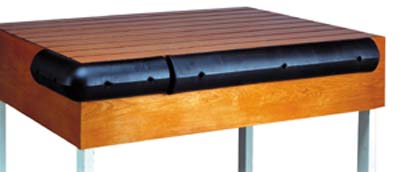

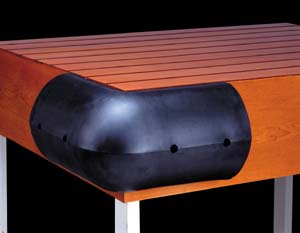

DOCKAGE EVA BUMPERS |
SOLID
ONE PIECE EVA FOAM THROUGHOUT
SUPER TOUGH
TEMPERATURE
RESISTANT & UV STABILIZED
PROVIDES MAXIMUM
CUSHION PROTECTION FOR DOCK & HULL
LONG TERM
LIFE-PUT IT ON AND FORGET ABOUT IT. AVAILABLE IN WHITE & BLACK |

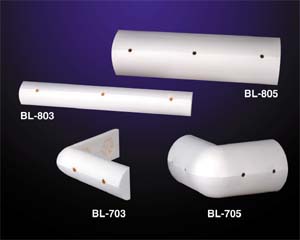

DOCKAGE EVA BUMPERS |
STOCK
NO. |
W*H*L*L |
INCHES |
CM |
BL-703 |
5" W*2 1/2"
H*11 L*11 L |
13*6.3*28*28 |
BL-705 |
10" W*5 H*11"
L |
25*13*28*28 |
BL-803 |
5" W*2 1/2"
H*34" L |
13*6.3*86 |
BL-805 |
10" W*5 H*34"
L |
25*132*86 |
|
 |
 |
|
|
